Chute Weigh Scales from Avery Weigh Tronix in the Central Carolina Scale electronic scale catalog

Chute Weigh
Ideal for livestock weighing and herd management!

The Chute Weigh system is ideally suited for installation under a manual or hydraulic livestock squeeze chute, or livestock scale. The ease of installation and setup, allows the system to be accurately weighing in just minutes. Installation can be portable or permanent depending on specific application. Available in a 5K or 10K capacity.

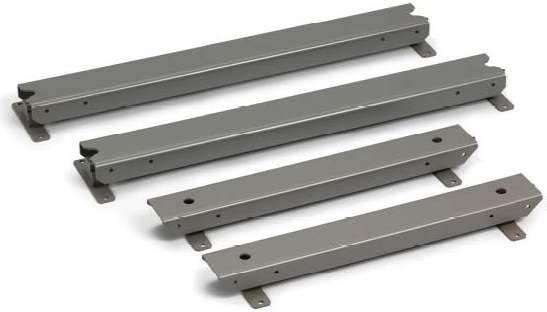

Chute Weigh Tronix

Features and Benefits:

Large weight capacity- Large weight capacity— 5,000 or 10,000 lb. gross weighing
capacity (2500/5000 lb per weigh bar).
Low profile- Less than 3.50 inches tall.
Heavy-duty construction- Super heavy-duty steel chassis construction.
Easy mounting- Mounting under manual or hydraulic livestock squeeze chutes.
Weigh bar cables- Tough polyurethane weigh bar cables, 20 ft long.
Weatherproof construction- Aerospace-developed sealing agent provides ultimate protection against moisture and ensures long term durability in harsh agricultural environment.

Brochure (pdf file) <---includes product dimensions

The complete Chute Weigh scale kit includes: (2) Chute Weigh weigh beams, 12VDC wall mount transformer, Model 640M scale indicator and indicator mounting bracket. Recommended Model 640M indicator features include: large backlit LCD display, auto-loc feature to capture livestock weight, auto-accumulate of livestock weight and statistics with number of livestock weighed, total weight, and average weight. Other indicator options include the Model 640/XL and the model 915A.

Part Number	Description	Ship Weight
48391-1038	Chute Weigh 5K kit with model 640M indicator	70 lbs
48391-1012	Chute Weigh 10K kit with model 640M indicator	128 lbs

Place the weigh beams under each side (see brochure above)

Options

Choice of Avery Weigh-Tronix Indicators
640M — The 640M indicator provides simple yet accurate
and reliable livestock weighing with auto-LOC and
accumulation features.
640XL — The Model 640XL is a general purpose indicator which provides simple, yet accurate and reliable weighing used on mixers, grain carts, livestock scales, feed bins, weigh carts and many more applications.
M915A — The Model 915A makes the chore of weighing livestock
quicker and easier. Features include auto-LOC capabilities,
statistical functions, 1000 weighment memory and auto
weight recording.

Power cable— 12 VDC power cable for external battery.

Transformer — 115VAC wall mount transformer.

System comes standard with 640M, click below for specs for each indicator available
